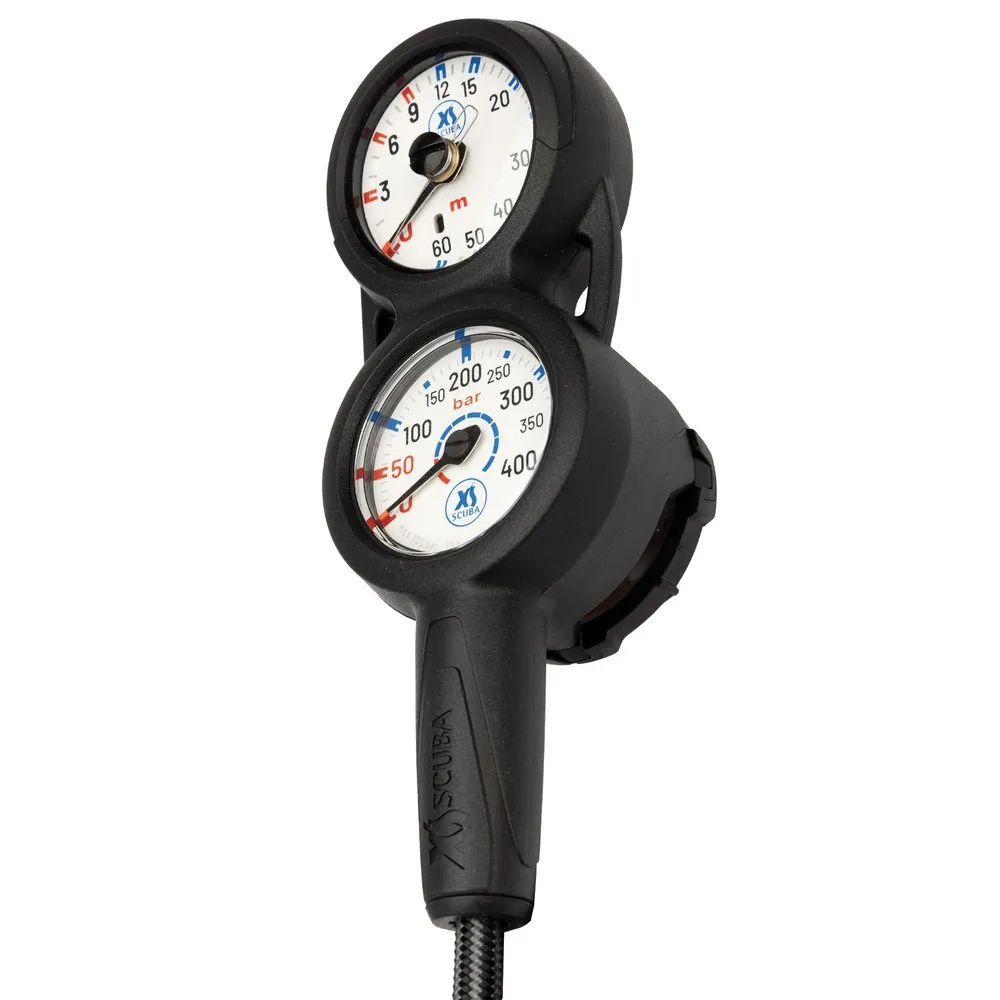

QuikVu Consoles are compact, lightweight, and have attachment points on both sides. The thin, braided HP hose is lighter weight and more flexible than a traditional rubber hose.

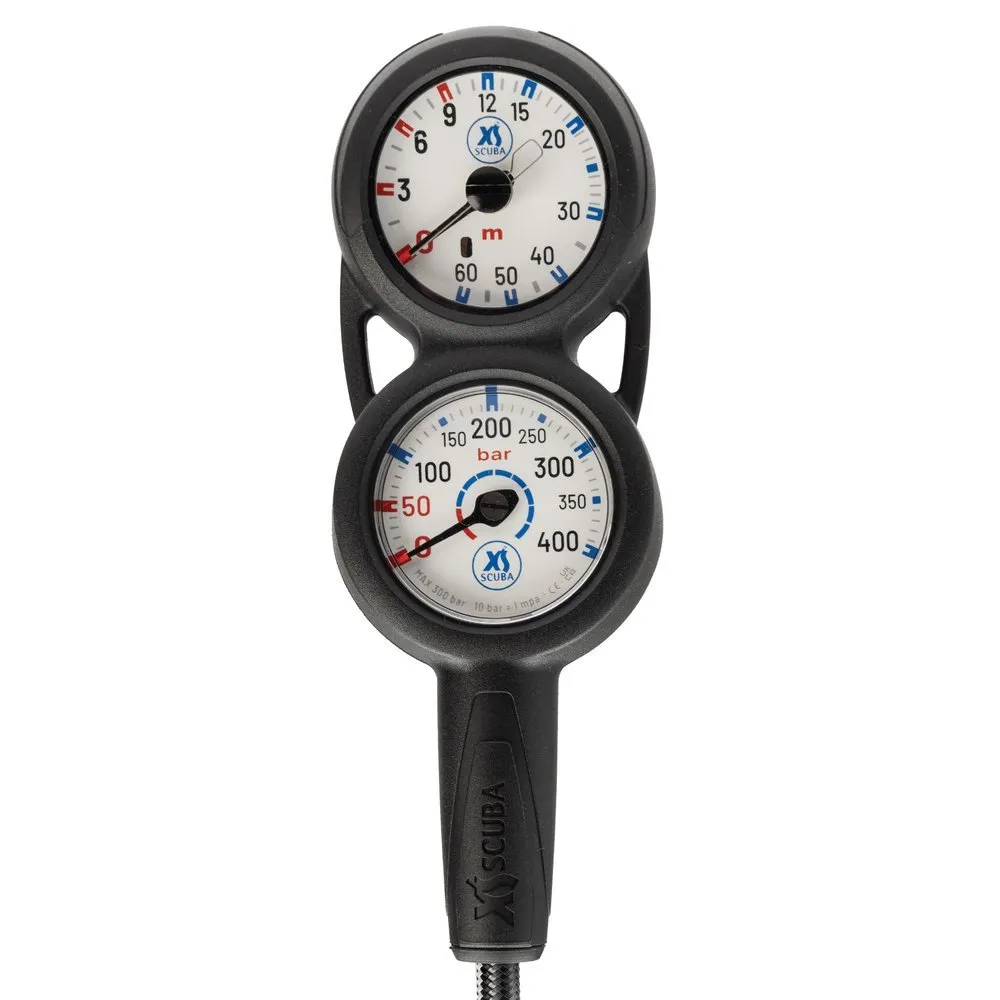

Front Side

Depth Gauge

Depth gauge scale is 0 to 60 m.

Includes a maximum depth indicator needle.

Luminescent gauge face.

Glass-filled nylon housing with shatterproof lens.

Pressure Gauge

Pressure gauge scale is 0 to 400 bar.

The Beryllium-Copper spiral-wound coil ensures greater reliability and compactness.

Bourdon Tube design provides accurate measurements under depth.

Luminescent gauge face.

Back Side

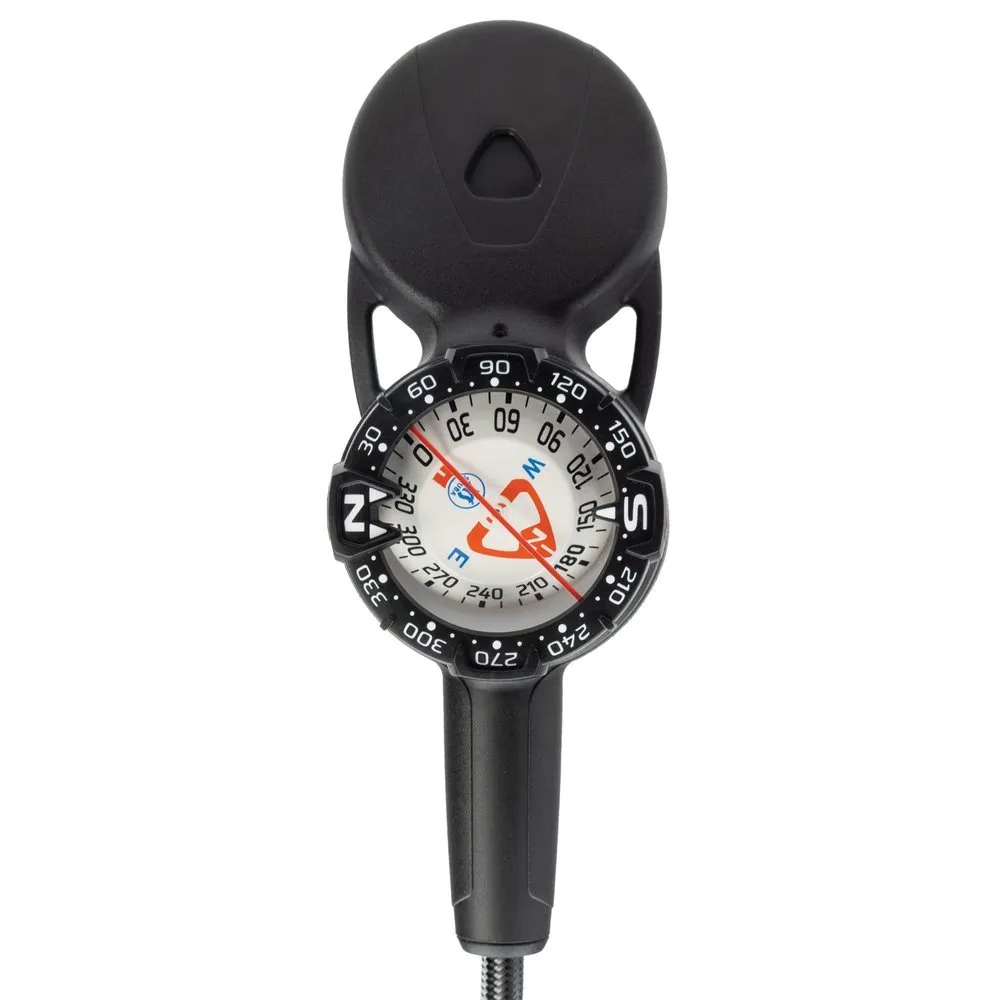

Compass

Large gun sight style viewing window allows for easy and accurate navigation.

Compasses have strong magnets to guarantee accuracy and quick response times.

Reads accurately over a wide tilt range.

The luminescent dial rests on a precision sapphire jewel.

Large, secure 360° ratcheting bezel.

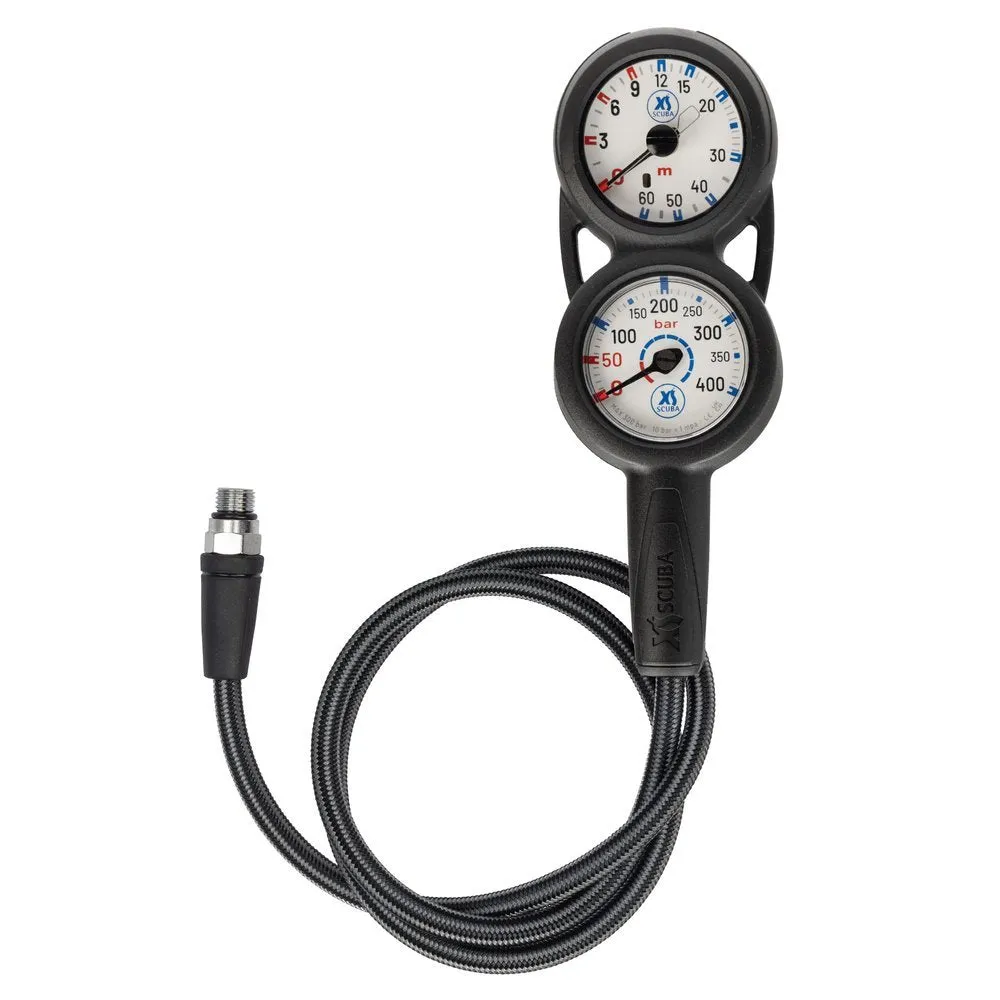

Includes 32 in (81 cm) braided HP hose.

CE 0598:EN 250 and UKCA 0120:EN250 certified.
